Welcome to the Lab.
This guide will walk you through everything you need to know, from initial hardware setup to advanced configuration, to unlock the full potential of your sim rig.

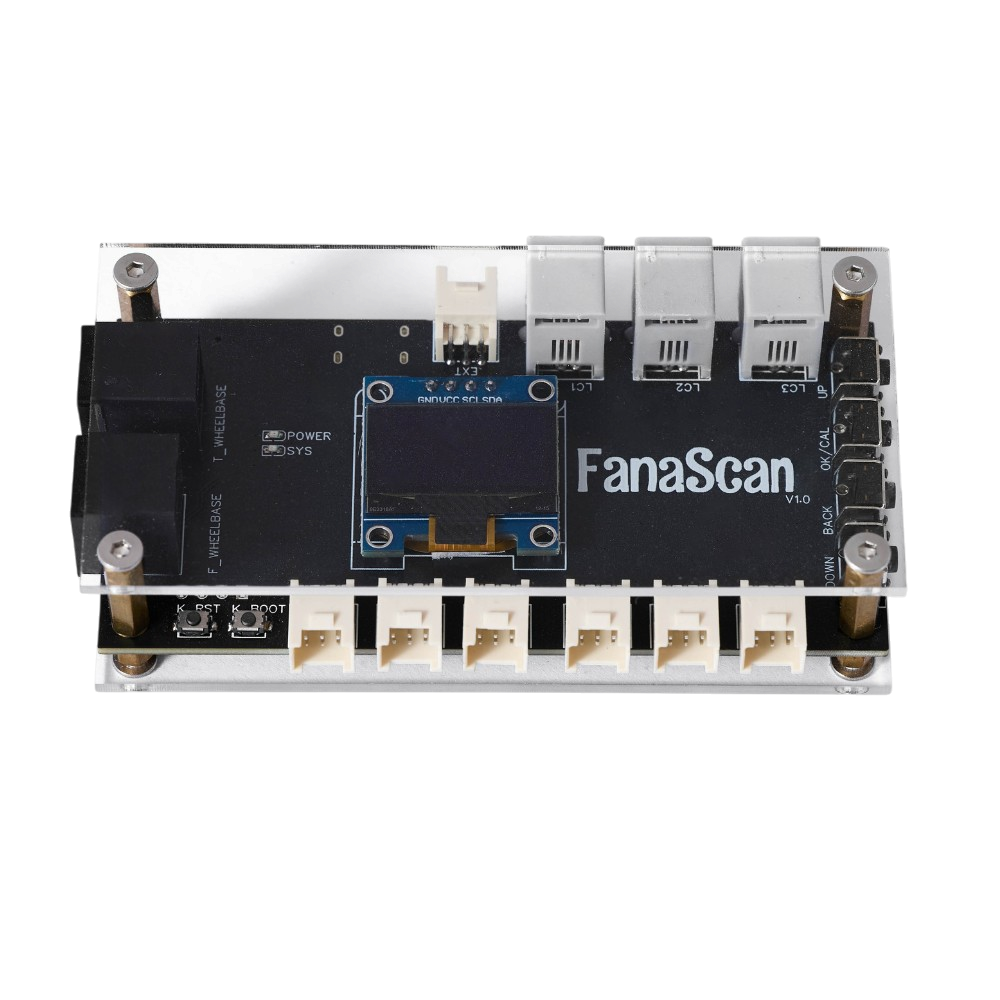

Hardware Overview & Connections
Before we dive in, let's get familiar with the hardware.
Interface
F_WHEELBASE / T_WHEELBASE: These are the primary ports to connect the adapter to your Fanatec or Thrustmaster wheelbase, respectively.
USB-C: Used for connecting to a PC for configuration software access and firmware updates.
AN1/AN2/AN3 (Analog): Standard 3-pin ports for connecting pedals with potentiometers or Hall effect sensors (e.g., Throttle, Brake, Clutch).
LC1/LC2/LC3 (Load Cell): Specialized 4-pin ports for connecting high-end load cell pedals.
EXT (Extension): Reserved for future expansion modules.
Buttons
All core functions can be controlled directly on the device.
F/T Switch (Fanatec/Thrustmaster Mode Switch)
This is the core hardware switch. Before powering on your wheelbase, set this switch to the correct position (F for Fanatec, T for Thrustmaster) to ensure proper recognition.
Navigation & Calibration Buttons
OK/CAL: Press to confirm a selection. Press and hold for 3 seconds to enter the calibration mode for the currently selected pedal.
UP / DOWN: Used to navigate menus on the OLED screen.
BACK: Returns to the previous menu or cancels an operation.
System Buttons
K_RST (Reset): Resets the device.
K_BOOT (Bootloader): Used for specific firmware update procedures.
Initial Setup & Calibration
1. Connect Everything: Connect your pedals to the appropriate AN or LC ports on the adapter, then connect the adapter to your wheelbase using the F_WHEELBASE or T_WHEELBASE port.
2. Power On: Turn on your wheelbase. The adapter's OLED screen will light up.
3. Assigning Input Channels
Enter Setup Mode: Press and hold the UP button to enter the Input Channel Setup menu.
Navigate: Use the OK and BACK buttons to move the selection cursor left and right across the different axes (Throttle, Brake, Clutch, Handbrake).
Change Channel: Use the UP and DOWN buttons to cycle through the available input channels for the selected axis (e.g., AN1, AN2, LC1, etc.). Assign the correct physical port to each function.
Save and Exit: Press and hold the OK button to save your new channel assignments and exit the menu.
4. Calibrating Pedal Inputs (Critical Step)
Calibration teaches the adapter the minimum and maximum travel of each of your pedals. This must be done for accurate performance.
Enter Calibration Mode: Press and hold the OK button for 3 seconds to enter Calibration Mode.
Calibrate All Pedals: The on-screen instructions will guide you. Press each of your pedals (Throttle, Brake, Clutch) through their full range of motion, from 0% to 100%.
Real-time Feedback: The screen will display the raw signal range being captured from each pedal as you press them.
Save and Exit: Briefly press the OK button to save the calibration data and exit.
5. Setting Throttle & Brake Curves（optional）
This advanced feature lets you customize the pedal response.
Enter Curve Setup: Press and hold the BACK button to enter the Curve Setup menu.
Configure Throttle Curve: The menu will first open the throttle curve editor.
Navigate Points: Use OK and BACK to move the cursor between the different adjustment points on the curve graph.
Adjust Values: Use UP and DOWN to change the value of the selected point, thus altering the shape of the curve.
Save & Proceed to Brake Curve: Press and hold OK to save the throttle curve and automatically proceed to the brake curve editor.
Configure Brake Curve: Repeat the same process to adjust the brake curve.
Final Save & Exit: After finishing the brake curve, press and hold OK again to save all curve settings and exit the menu.
6. Setting Deadzones（optional）
This helps eliminate any unwanted signal noise when the pedals are at rest.
Enter Deadzone Setup: Press and hold the DOWN button to enter the Deadzone Setup menu.
Navigate Axes: Use OK and BACK to select which axis (Throttle, Brake, etc.) you want to adjust.
Adjust Value: Use UP and DOWN to set the desired deadzone value (e.g., 1-5%).
Save and Exit: Press and hold OK to save the deadzone settings and exit.
7. Switching Between Configuration Profiles（optional）
You can save up to four complete configurations and switch between them instantly.
In the main operational screen (the default screen during gameplay):
Use the UP and DOWN buttons to cycle through the four available configuration profiles (Profile 1, Profile 2, etc.). The change is instant.
Your pedals are now ready for racing!
Troubleshooting & Support
1. Pedals are not detected by the wheelbase.
Solution: Ensure the F/T Switch is in the correct position before powering on the wheelbase. Double-check all cable connections.
2. Pedal input is not linear or doesn't reach 100%.
Solution: Re-run the onboard calibration process carefully, ensuring you press the pedal to its absolute maximum travel.
For any further questions, please contact our support team. We're here to help.
